Amazingly Tall Vehicle Display Hoist for Dealers

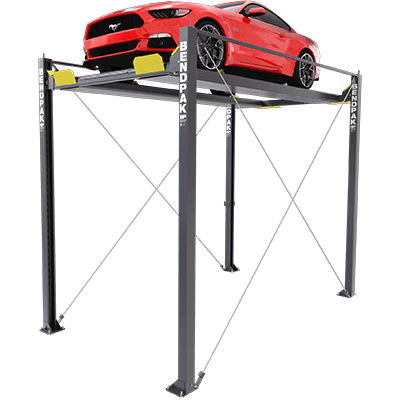

The HD-7MZ was created as the exclusive showroom vehicle display hoist for dealerships nationwide. As part of our push to offer dealers better vehicle display options, the HD-7MZ stacks two cars in a "jewel box" glass display in front of their dealership. Attract customer’s passing by on nearby highways or within the main showroom. Our specially designed four-post hoist features full 360-degree visibility of the car from all sides and includes an attractive low-sheen, rich black powder coat finish. More than just unique styling, this car hoist is easy to use and features a platform locking system that safely secures raised vehicles in varied height positions for an open display viewing area. Its hydraulic drive system is hidden under the fully covered platforms for a clean, clutter-free look. The HD-7MZ four-post hoist has a 3,175-kg. hoist capacity and 4,775 mm long runways to accommodate a variety of vehicle types and wheelbases.
Why get a display hoist?
Auto dealerships are always looking for an edge when it comes to their displays. The newest vehicles, or the ones most likely to attract customer attention, need to be prominently shown and visible from the street. The narrow dimensions of this hoist, as well as its sleek, low-sheen black coloration, allow it to blend seamlessly into busy lots and showrooms. This way, the vehicles are all that people notice. Its 3.65 m high rise is also perfect for getting cars seen from over the highway or across the street. Designed originally for dealerships of any size, this hoist is perfect for anyone desiring to gain an edge over the competition. Our job is to help make your inventory look its best, so you can increase your dealership's foot traffic and close more deals.
Same great benefits as other hoists
The HD-7MZ has all the same safety and convenience features as other BendPak four-post hoists. A one-touch pneumatic safety release instantly releases all locks simultaneously, and the hoist's lone hydraulic cylinder is neatly tucked under the power-side runway. Additionally, the entire undersides of both runways are completely covered to improve the aesthetics of the hoist when viewed from underneath. Since this hoist reaches incredible heights, we felt it necessary to cover up the mechanical and electric-hydraulic componentry. There's simply no better-looking and higher-reaching display hoist on the market than the HD-7MZ.
- 3,175-kg. maximum lifting capacity
- Super tall rise of delivers 3.7 m of lifting height
- Low sheen black color
- Underside of runways are shielded by full-length covers
- Electric / hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers
- Features heavy-duty 38 mm aircraft cable
- Rugged 32 mm roller axles
- Multi-position safety locks in each column
- Adjustable lock ladders
- Ramps feature non-skid surface
- Push-button pneumatic safety release
Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
