HD-7500BLX

SKU# 5175315

3,401-kg. Capacity / Vehicle and Boat Storage Hoist / 2,082 mm Rise


Avoid rust, blemishes, rot, weather damage and more with BendPak's longer, extended-height HD-7500BLX boat hoist. It's the safest, most cost-effective way to dry dock your boat.

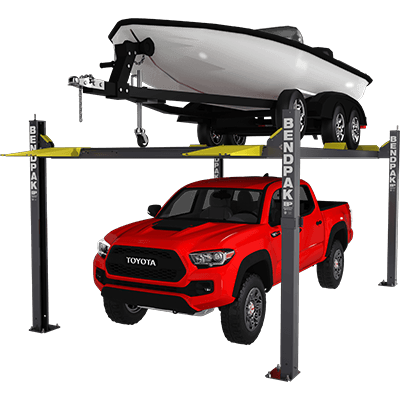

HD-7500BLX Vehicle and Boat Storage Lift by BendPak
User Manual Download
Sales Sheet Download
Warranty Download

The Perfect Boat ​Hoist for Dry Docking

Never trust your precious boat to the unpredictability of the water, nor should you pay for dry docks and/or yard storage. Salt water corrosion, barnacles, rust damage, rub marks, coating blemishes, rot and cold weather can do irreversible harm caused to your boat's engine and interior. The longer you go without a boat hoist, the more you leave yourself open to catastrophe.

BendPak has the perfect solution: Keep your boat up in the air and out of the water. Because it features adjustable runways that accommodate cars and trucks, the HD-7500BLX pulls double-duty as a professional-grade car hoist for ground vehicles.

Valley Indoor RV Storage Uses BendPak Boat Storage Hoists

BendPak designed and engineered

A BendPak boat hoist is crafted to the same strict specifications as our automotive hoists, so you know that your boat is exceptionally safe.

No more docking fees

A boat lift is a great way to shield yourself from monthly boat storage fees. The larger the boat, the bigger the bill, so there's no better way to keep your boat safe than to store it in your own garage.

Great for business owners

Boat storage business owners will also benefit from BendPak boat hoists. They understand better than anyone that more storage can help the business earn a bigger bottom line. Offer your customers the safest boat storage solutions; it's one of the best business decisions you'll ever make.

Fits most boat trailers

Wide and narrow installations help accommodate virtually all boat trailer types.

Dependable design

Four heavy-duty, stainless steel wire ropes and a single hydraulic cylinder mounted underneath the runway make this hoist one of the most durable, maintenance-free models on the market.

Dual-hub wire rope sheaves

Reduce stress and fatigue on the axles, sheaves and cables. We insist on using dual-hub sheaves where appropriate, even if they cost us more to make.

Multi-level locking positions

BendPak boat hoists are equipped with multiple adjustable height locking positions for variable-height parking. A convenient lock system releases all four independent safety locks simultaneously.

Heavy-duty aircraft cable

Each hoist is supplied with 4 high-quality stainless steel wire ropes, each of which is rated to hold 6,531-kgs.

Electric-hydraulic power system

We incorporate maintenance-free electric hydraulic power systems into each hoist for ultimate dependability. All controls are placed close at hand.

Single hydraulic cylinder

Each hoist is equipped with a single hydraulic cylinder, hidden away under the runway for minimum exposure and maximum performance.

Integrated design

Hoisting cables, airlines, safety latches and sheaves are all fully enclosed. This design protects all components and extends the lifespan of the hoist.

Longer approach ramps

Low-profile, extended-length approach ramps ensure boat trailers will load onto the runways with ease.

Automatic safety locks

Stainless steel and aluminum pneumatic cylinders release all 4 locks simultaneously with the simple push of a button, and spring-loaded safety locks engage continuously as the hoist is raised. For added safety, a secondary lock system acts as a slack-cable device for emergency protection.

Remember, dry docking is the only way to ensure that boats are safe from water-related damage. With an in-water hoist, choppy waters, floods and tides can make an unexpected mess of your beautiful boat. Don't take chances! Make sure your boat is high and dry on the BendPak HD-7500BLX boat lift.

Features

  • 3,401-kg ​hoisting capacity
  • Two different ​hoisting heights to choose from
  • Electric / hydraulic power system
  • Internal anti-sway slider blocks in each column
  • Both models feature heavy-duty 9.5 mm aircraft cable
  • Multi-position safety locks in each column
  • Ramps feature non-skid surface
  • Runways include rail-kit for optional accessories
  • Single hydraulic cylinder underneath runway
  • Over-sized self-lubricating cable rollers
  • Rugged 31 mm roller axles
  • Adjustable lock ladders
  • Push-button pneumatic safety release
  • Durable powder coat finish

HD-7500BLX Specifications

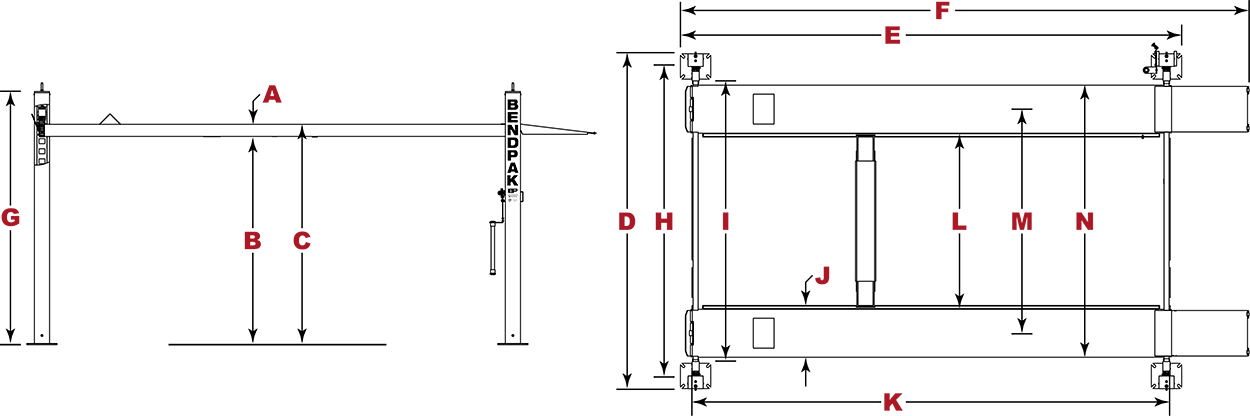

HD-7500BLX specs diagram

Capacity

Lifting Capacity*
7500
*Max Capacity / Front Axle
3750
*Max Capacity / Rear Axle
3750

Rise

A - Min. Runway Height:
5
B - Max. Rise:
82
C - Max. Lifting Height:
87
Time to Full Rise:
55 seconds

Outside Dimensions

D - Overall Width:
132
E - Outside Length:
198
F - Overall Length:
224
G - Height of Columns:
100

Inside Dimensions

H - Width Between Columns:
122
I - Drive-Thru Clearance:
108.5

Runways

J - Runway Width:
19
K - Length of Runways:
188.5
L - Width Between Runways:
49.5 or 69.5
M - Runway Centerline:
68.5 or 88.5
N - Outside Edge of Runways:
87.5 or 107.5

Minimum Wheelbase

Rated Capacity:
135
75% Capacity:
115
50% Capacity:
95
25% Capacity:
80

Locking

Locking Positions:
15
Lock Spacing:
Every 4" (102 mm)

Power Unit

Motor:
220 VAC / 60 Hz / 1 Ph
Noise:
45 dB

Shipping

Weight:
Dimensions:

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

Note: Not all BendPak hoist models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.
