Four-Post Hoists by BendPak

HDS-27

SKU# 5175162

12,247-kg. Capacity / Four-Post Hoist / Standard


If you need a bigger, better four-post hoist that can handle a 12,247-kg., Class 7 semi-truck, you need the HDS-27. Bigger sheaves and beefier components carry on our legacy of dependability. If your shop services commercial and/or municipal vehicles, this hoist is practically mandatory.

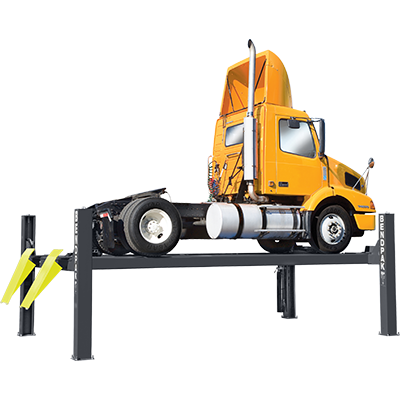

HDS-27 Four-Post Truck Hoist by BendPak
User Manual Download
Sales Sheet Download
Warranty Download

Construction, Municipal and Commercial Vehicles Welcome

This is where our car hoists really step into the next level of hoisting. While the HDS-18E is an entry-level hoist in the medium-duty truck category, the HDS-27 is well-suited to take your business well beyond the needs of most private drivers. This garage hoist brings you into the realm of construction equipment, commercial flatbed trucks, concrete mixers, garbage trucks, buses, etc.

Every BendPak four-post hoist, regardless of hoist capacity, is made to exacting standards and gets the job done without undue strain or pain on the equipment. When we rate a truck hoist at 12,247-kg., that means anything at or under that weight limit is a cinch for our hoists to handle. We superbly over-engineer everything, so you can keep the “biggest and baddest” commercial and municipal vehicles up to code and ready for the next great haul.

Extended runways

Longer runways accommodate a wide variety of vehicle wheelbases, allowing you to steer massive trucks and buses onto our ramps without damaging your vehicle chassis.

Dual-hub cable sheaves

We take the time, cost and effort to bring you the best. Each sheave contained within the runway and cross tubes is a massive 305 mm in diameter, and the sheave axles, at 102 mm in diameter, greatly extend the lifespan of your hoist by reducing the overall wear put on these parts. Manufacturing sheave components are even bigger than ones offered by our competition, which ensures superior quality in our product. Additionally, BendPak parts always meet or exceed ALI standards for load bearing and safety.

Heavy-duty aircraft cable

Each of the four, ​13 mm diameter, ​153 mm x ​635 mm ​galvanized hoisting cables has a ​6,250-kg. breaking strength, so a four-post hoist as massive as this has the engineering to keep your vehicles safe at all times, especially during periods of heavy use. They won’t rust out or break apart due to bad weather, chemicals or random, floating garage particulate.

Built-in lubrication

The sheaves and sheave axles are fitted with grease nipples to lubricate the parts as they move. This is an essential feature that is also a form of auto-maintenance, so you have little to do during your periodic service checks.

Flow restrictor

This truck hoist provides the best that modern hydraulic technology has to offer. Integrated into the hydraulic cylinder is a flow restrictor that provides a safe, slow descent. This is true even in the extremely rare occurrence of a burst or ruptured hydraulic hose.

Large base plates

Substantial 305 mm x 305 mm base plates support the massive columns.

Spring-loaded safety locks

When the HDS-27 truck hoist rises, spring-loaded safety locks engage the moving platforms. Safety ladders are standard and can be adjusted to keep the runways level, which is especially useful for sloped floors.

Push-button pneumatic lock release

The steel and aluminum pneumatic cylinders are aircraft-quality and certified to last for years without service. Lowering the hoist release off the locks is done with one push against the pneumatic lock release. Just another simple way we put you in total control of your hoist operations.

Secondary lock system

Two locks are better than one! A secondary slack-cable lock engages in case of cable failure, which is unlikely to occur. Still, we prepare our heavy-duty hoists for the worst to keep you working at your best.

Integrated design

Tucked safely into the structure of the four-post hoist columns, our lifting cables, airlines, safety latches and cable sheaves are kept away from inclement weather, hazardous chemical erosion and garage dirt/debris. The column structure is the safest and most logical place to conceal the working parts of the hoist. Internally routed parts are also crucial to creating the beautiful BendPak aesthetic our customers have come to know and love!

Adjustable height locking positions

Four-post hoists accommodate many different vehicle types, so we’ve made sure you can adjust the height to suit your needs and safely lock your vehicle in place.

Electric-hydraulic power system

Our car hoists are designed with all operator buttons within reach, so you can raise, lower or shut down the system at any time. One-push button controls make the whole process that much smoother.

Flexible protective conduit

All of BendPak’s heavy-duty cables are fitted with a protective casing that is flexible and non-conducive to electricity. Your hoses will be intact and serviceable for many years without service, and the non-metallic tubing will ensure you’re never shocked by anything other than the great value of your purchase.

Rolling bridge jacks

Bridge jacks raise the wheels above the runways, which lets operators perform wheel and brake service on the car. Since the HDS-27 Series supports some extremely heavy vehicles, the truck and SUV adapter set is a necessity for wheel/brake service on these hoists. Commercial-grade hydraulic pumps come standard and require 125 PSI and 10 – 20 CFM.

Choose extended length

Some vehicles at the 12,247-kg. hoist capacity begin to develop monstrous proportions. Garage trucks, for instance, are wide, tall and feature wide wheel bases. You need a car hoist that can handle all those dimensions, plus the weight, without crapping out on you. The super-long HDS-27X may be the better option for your shop. Just be sure to discuss your service needs with a trained BendPak service representative if you need help deciding which 27K four-post hoist is right for you.

*Not all BendPak hoist models meet the standards as prescribed by ANSI/ALI ALCTV-2011 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.

Features

  • 12,247-kg. lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
  • Supersized 305 mm diameter cable sheaves
  • ​Galvanized lifting cables
  • Grease nipples
  • Single hydraulic under-runway cylinder
  • Integrated flow restrictor
  • Durable powder coat
  • Spring-loaded safety locks
  • Second lock system on constant guard
  • Fully enclosed lifting cables
  • Multiple adjustable height locking positions
  • Maintenance-free electric hydraulic power system
  • Conveniently positioned operator controls
  • 305 mm x 305 mm base plates
  • Optional rolling jack

HDS-27 Specifications

HDS-27 specs diagram

Capacity

Lifting Capacity*
27000
*Max Capacity / Front Axle
13500
*Max Capacity / Rear Axle
13500

Rise

A - Min. Runway Height:
83.5
B - Max. Rise:
60
C - Max. Lifting Height:
68.5
Time to Full Rise:
75 seconds

Outside Dimensions

D - Overall Width:
154
E - Outside Length:
257
F - Overall Length:
297
G - Height of Columns:
93

Inside Dimensions

H - Width Between Columns:
134
I - Drive-Thru Clearance:
109

Runways

J - Runway Width:
22
K - Length of Runways:
263
L - Width Between Runways:
38 or 56
M - Runway Centerline:
60 or 78
N - Outside Edge of Runways:
82 or 100

Minimum Wheelbase

Rated Capacity:
185
75% Capacity:
160
50% Capacity:
135
25% Capacity:
110

Locking

Locking Positions:
9
Lock Spacing:
Every 6" / 152 mm

Power Unit

Motor:
220 VAC / 60 Hz. 1Ph.
Noise:
45 dB

Shipping

Weight:
Dimensions:

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

Note: Not all BendPak hoist models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.
