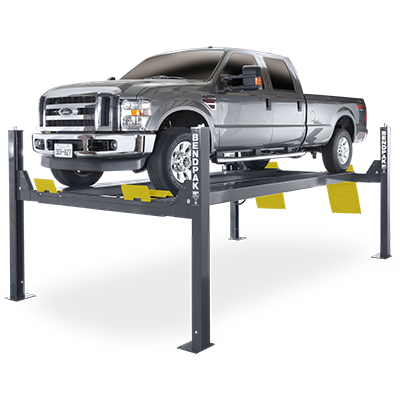

The HDS-14X Offers Extreme Length, Extreme Ease-of-Use
We call this our "limo style" hoist because of how much front-to-back clearance it offers. Now your longest vehicles can make it over or under the hoist with ease, and because it fits low-profile vehicles as well as heavy, high-stance ones, this hoist instantly brings BendPak's unparalleled versatility and legendary craftsmanship right to your garage. If you're familiar with our standard-sized hoists, you know that BendPak equipment is better-built and longer-lasting, no matter the size or weight capacity of the hoist.
The HDS-14X is an ideal four-post hoist for commercial shops looking to expand their service abilities. The runways are extended 762 mm more than our standard-length model to a whopping 5,817 mm. The extended approach ramps provide a safe, gradual climb, and an ample 1,778 mm rise permits most mechanics to stand upright to perform oil changes, exhaust service, wheel service and every other undercarriage activity.
Super-long 5817 mm runways
The core of the HDS-14X is its expanded runway length. At 5,817 mm, there isn't much this hoist can't handle in its weight class. More vehicles mean more opportunities for profit. Best of all, smaller vehicles fit too, so this one hoist alone might be enough to service every vehicle your customers bring in.
Dual-hub cable sheaves
Dual-hub cable sheaves reduce stress, fatigue and wear across the entire structure of the car hoist. Large sheaves improve the durability of the entire hoist, so this limo style hoist utilizes huge, 267 mm diameter cable sheaves within the runway and cross tubes, as well as massive 57 mm diameter sheave axles.
Large base plates
254 mm x 305 mm base plates provide a solid foundation that doesn't excessively clutter your space.
Spring-loaded safety locks
Safety locks are one of the most crucial features of a car hoist. BendPak locks engage continuously as the hoist rises. The HDS-14X offers adjustable safety ladders, permitting fast, simple runway leveling. This is especially useful when compensating for slope.
Secondary lock system
A cable slack detection system acts as a backup lock, catching and stabilizing the hoist platforms in the unlikely development of slack in the cables.
Longer approach ramps
Extended approach ramps decrease the drive-on angle of the vehicle, which is especially useful for low-riding sports cars that might otherwise get scratched or damaged.
RBJ7000 rolling bridge jack
An RBJ7000 3,175-kg. rolling bridge jack is enough to engage the frame of a 6,350-kg vehicle and hoist half of it in the air. Rolling bridge jacks are necessary for four-post hoist operators looking to maximize their shop capabilities and perform wheel service. BendPak bridge jacks are second-to-none in quality and are highly recommended for all full-service shops.
- 6,350-kg. lifting capacity
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
- Mid to long-style approach ramps for low ground clearance vehicles
- Runways include rail-kit for optional accessories
- Single hydraulic cylinder mounted underneath runway
- Fully enclosed lifting cables, safety locks and sheaves
- Internal anti-sway slider blocks in each column
- Pneumatic push-button safety release
- Features heavy-duty 13 mm aircraft cable
- Safety locks enclosed in columns minimize pinch points
- Oversized sheave diameter reduces cable fatigue
- Oversized self-lubricating cable rollers
- Rugged 45 mm roller axles
- Multi-position safety locks in each column
- Customizable power unit location
- Approach ramps incorporate built-in rear-wheel chocks
- Independent backup slack-cable safety latches
- Optional drive-thru ramps available
- Optional drip trays available
- Optional 3,175-kg. capacity rolling jacks available (Model RBJ7000)
- ETL approved
Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
