Two-Post Hoists by BendPak

XPR-10AXLS

SKU# 5175991

4,536-kg. Capacity / Two-Post Hoist / Asymmetric Clearfloor / Extra Tall


The XPR-10AXLS model adds 152 mm of lift and extends the overall height by 152 mm. Taller people know that the difference between stooping and standing under a two-post hoist can be the difference between severe back/neck pain and working in total comfort.

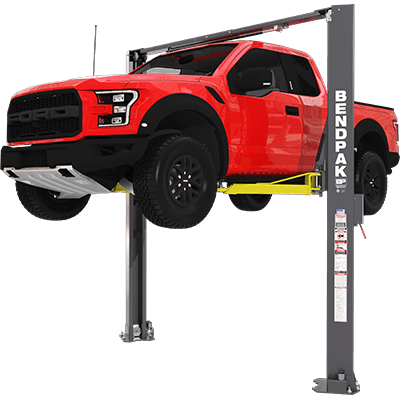

XPR-10AXLS Extra-Tall Two-Post Hoist by BendPak
User Manual Download
Sales Sheet Download
Warranty Download

The XPR-10AXLS Offers Extended Height PLUS 1,905 mm Lifting Height

Car ​hoists don’t offer taller lift carriages or get easier to work under than this. If you need maximum security and an extended working height that’s ideal for taller individuals, you need the BendPak XPR-10AXLS. This particular two-post hoist features an absolutely massive 1,905 mm cylinder stroke, which means we did more than just extend the columns for the sake of overhead clearance. We actually lift the bottom of the vehicle ​152 mm higher than our standard two-post hoist height. True safety requires taller carriages. Higher carriages eliminate balance issues that come into play when lifting trucks and SUVs.

This model is truly something to get excited about. If your shop has the overhead clearance—at least ​4 metre—the XPR-10AXLS might be the best hoist you ever purchase. The big n’ tall techs in your shop won’t forget it!

Direct-Drive technology

The XPR-10AXLS offers tandem performing, low-pressure HVLP direct-drive cylinders that replace the lifting chains and screw-type mechanisms often featured on other two-post ​hoists. These direct-drive cylinders prevent leaks, are more reliable and run more smoothly than other systems too. Two-post hoist operators generally prefer our Direct-Drive technology, as it requires fewer moving parts than chain-over ​hoists. Hydraulic fluid gets pressurized, starting at the power unit and flowing through the hollow cylinder rods. The downward motion of the piston rod raises the massive 1,854 mm lifting height while dual-synchro equalizers ensure a safe, even, worry-free ​hoist.

Two-Stage telescoping screw pad assembly kit

BendPak’s two-stage telescoping screw pads are second-to-none in strength and durability. That’s good, because we hope you’re going to be using this hoist for decades. Gouge and tear-resistant polyurethane pads improve safety and ensure you’re not constantly replacing equipment. We even throw in a set of 63 mm stackable adapters when you purchase the XPR-10AXLS.

Low-profile, dropped-end frame contact pads

Extremely low-profile contact pads are well-suited for compacts and sport cars. The dropped-end frame design makes your two-post ​hoist arguably the most versatile hoist ever made.

Triple-telescoping front arms and two-stage rear arms

Increases overall arm positioning for lifting a variety of wheelbases. Overall arm sweep and minimum arm reach are also extended to precisely lift vehicles that have unibody construction, OEM-recommended pick-up points and wide and/or narrow configurations.

Lowered arm tube supports

Our arm tube supports are kept low, maximizing clearance for vehicles of almost any size and type under 4,536 kg.

Automatic arm restraints

Each telescoping arm has extremely durable restraints that engage when the hoist rises and release as it lowers. This makes repositioning the arms fast, easy and always safe.

Our tallest lift carriages ever

The ​1,499 mm carriage height on the XPR-10AXLS is the highest in class for our two-post hoists. You’ll be hard-pressed to find a safer hoist at a better value for your taller techs. Finally, tall mechanics can work ergonomically—no more painful stooping to get the job done.

Maintenance-free load bearings

BendPak uses UHMW load bearings to protect your vehicle when it’s up in the air. These bearings are located at the pivot point where the telescoping arm meets the lift carriage. Ours are so well designed they’re virtually indestructible and should last more than the lifetime of your hoist.

Single-piece columns

Why make our columns a single piece of steel? It reduces stress and fracture points. Simply put, your car hoist's columns are never going to let you down. The foundation of every BendPak hoist is built to last for many decades of continuous, heavy-duty use in a fast-paced shop.

Single-point safety release

Safety is our main concern, and that’s no joke when lifting up to 4,536 kg. A single point safety release ensures two hands need to be on the ​hoist during operation. This virtually eliminates pinch potential and other accidents that commonly occur on ​hoists made by less scrupulous manufacturers.

Auto shutoff

A super-tall two-post ​hoist needs a safety measure to ensure high-clearance vehicles don’t smash into the upper support beam. The padded auto-shutoff bar ensures ​hoist functions cease the second a vehicle touches it.

Features

  • Lift arms shown with optional foot guards
  • 4,536-kg. lifting capacity
  • Expandable top beam accommodates wide or narrow configuration
  • Double‐telescoping screw pads offer increased versatility
  • Padded overhead safety shutoff bar
  • Single‐piece columns
  • Dual hydraulic direct‐drive cylinders
  • Oversized 1,499 mm tall carriage for superior strength and durability
  • Electric / hydraulic power system
  • Large, ​432 mm x ​483 mm A36 steel base plate
  • Self‐lubricating dura‐glide UHMW polyethylene bearing system
  • Single‐point safety release
  • Safety locks in each column spaced every ​76 mm
  • Plated arm restraints and arm pins for rust prevention
  • Heavy‐duty ​13 mm aircraft‐quality equalizer cables
  • Oversized cable sheave diameter reduces cable fatigue
  • 4‐piece 63 mm stackable adapter set comes standard
  • ALI ​Certified

XPR-10AXLS Specifications

XPR-10AXLS specs diagram

Capacity

Lifting Capacity*
10,000
*Max Capacity / Front Axle
5,000
*Max Capacity / Rear Axle
5,000

Rise

A - Rise:
75
B - Rise + Pad Only:
79
C - Rise + Pad + 63 mm Adapter:
81.5
D - Min. Height + Pad:
4.25
Time to Full Rise:
50 seconds

Outside Dimensions

E - Height Overall:
157
F - Width Overall:
132 or 145
G - Outside Columns:
126.75 or 139.75

Inside Dimensions

H - Inside Columns:
105.5 or 118.5
I - Drive-Thru Clearance:
93 or 106

Arms & Pads

K - Front Arm Reach: (MIN)
28.5
K - Front Arm Reach: (MAX)
47.5
L - Rear Arm Reach: (MIN)
28.5
L - Rear Arm Reach: (MAX)
47.5
Screw Pad Adjustment:
2
Max Load Per Arm
2,500

Floorplate

L - Height:
M - Width:

Power Unit

Motor:
220 VAC / 60 Hz / 1 Ph
Noise:
45 dB

Shipping

Weight:
Dimensions:

Note: Not all BendPak hoist models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.
