Tyre Repair by Ranger


SKU# 5140120

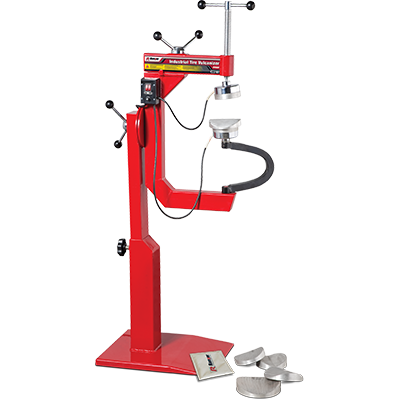

Heavy-Duty Tyre Vulcanizer

The Ranger RV-80L Tyre Vulcanizer quickly and easily repairs tyres for the fraction of the cost of purchasing a new tyre.

RV-80L Tyre Vulcanizer for Tyre Repair by Ranger Products
User Manual Download
Sales Sheet Download
Warranty Download

Tyre Repair Made Easy

With the RV-80L Tyre Vulcanizer, you can repair the tread, shoulder and sidewall areas of passenger tyres, light truck tyres, bus tyres, coach tyres and commercial truck tyres with no hassle. The unit accommodates one-man operation. With a fully rotating C-frame, RV-80L adapts to different wheel sizes. With an adjustable height tower and five contoured heat pads, it offers unparalleled ease of operation.

Don’t replace—repair! The vulcanizing repair process cures the patch and inner tyre lining to form a dense, sealed repair job. Long-life Acme thread hand-wheel screw applies over 2,268 kg of pressure and heat for maximum adhesion of patch to casing.

This vulcanizer requires no time-consuming tensioning straps. Simple clamps keep the tyre in place while you work. Includes assembly stand, five contoured curing heads and a high-temperature aluminium-filled, silica-cloth heating pad. Curing heads can be operated individually or simultaneously for maximum repair efficiency. Large-capacity, fully rotating C-frame accommodates different wheel sizes and allows for vertical or horizontal repairs. An adjustable, swing-open, rotating C-frame cavity simplifies tyre loading and unloading while maximizing stability.


  • Simple, one-​person operation
  • Repairs tread, shoulder and sidewall
  • Adjustable height tower
  • Contoured inner and outer curing heads conform to a variety of tyre profiles
  • Energy and cost-efficient for lower operating costs
  • Lightweight, self-standing design offers portability and maximum stability
  • Handles long sidewall repairs
  • Cures both patch and plug simultaneously
  • Constant-controlled heating elements maintain optimum temperature


RV-80L specs diagram
57” x 22” x 14” (1,448 mm x 559 mm x 356 mm)
1 Curing Head
6.5” (165 mm)
1 Curing Head
5.5” (140 mm)
3 Curing Heads
4.75” (121 mm)
Silica Heating Pads
7.5” x 5.5” (191 mm x 140 mm)
Power Requirement
110 V / 60 Hz / 1 Ph
Shipping Weight
78 lbs. (35 kg)
