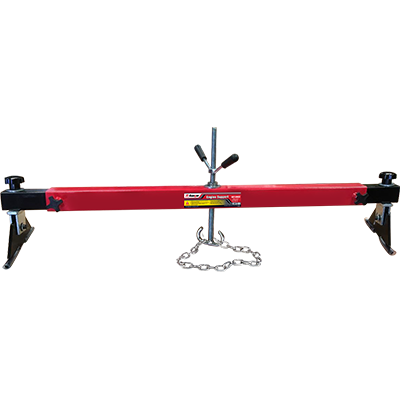

Engine Support Beam by Ranger

RST-500ES

SKU# 5150103

Engine Support


Ranger’s RST-500ES offers 680-kg. of engine support to safely hold the weight of your engine while you conduct basic service and maintenance. Perfect for shops and home garages alike.

RST-500ES Engine Support by Ranger Products
User Manual Download
Sales Sheet Download
Warranty Download

An Engine Support that Saves Techs Time

The engine is the heart and soul of a vehicle. Don't trust its care to anything but Ranger. If you’re replacing or servicing engine mounts but don’t want to hoist the entire engine to do so, save time and money with a superior-quality engine support beam. Professionals and DIY’ers both benefit from having an engine support hand for fast access to the engine.

The RST-500ES is designed for unparalleled adaptability: threaded adjustable chain hooks and telescoping side foot pads adjust to all manner of engine compartments. Wheel well to wheel well support provides a solid foundation for up to 680 kg. of engine while you're working on the transmission or dropping a sub-frame. This engine support is both easy to use and saves real time, every time. And we all know that in this business, time means money.

Features

  • Straddles inner fender wells to support engines
  • Adjusts to fit all vehicles
  • Precisely positions engine for easy gear box and transmission removal
  • Perfect for 4 and 6 cylinder engines
  • Rubber foot pads prevent damage and holds load securely

Specifications

RST-500ES specs diagram
Holding capacity:
1,500 lbs. (680 kg)
Maximum width:
63" (1,600 mm)
Minimum width:
40" (1,016 mm)
Screw travel:
13" (330 mm)
Shipping weight:
50 lbs. (23 kg)
Shipping dimensions:
41" x 8" x 3" (1041 mm x 203 mm x 76 mm)
