Pipe Benders by BendPak

Small 76 mm Die Package

SKU# 5105567

Optional 300-2 Small 76 mm Die Package / 4-Piece / Purchased with Pipe Bender


Optional 4-piece small die package extends the bending capabilities of your BendPak pipe bender.

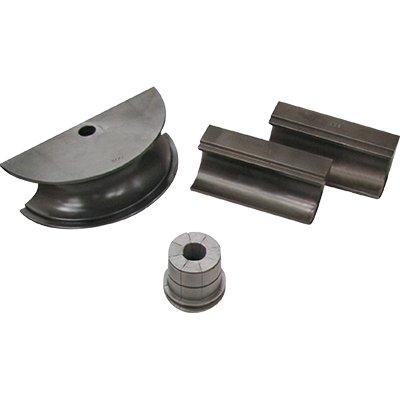

4-Piece Optional 76 mm Die Package for Pipe Benders
User Manual Download
Sales Sheet Download
Warranty Download

The Perfect Small Die Bending Package

A 76 mm bending capacity is built into our pipe benders, and this small, custom die kit is the product of our exclusive step-cut manufacturing process that contains larger-sized tubing for a more uniform bend. You can bend 76 mm tubing, but you can also expand and flare. The bending possibilities are virtually endless!

All BendPak tooling is precision-machined from solid steel. After the CNC machining process, the tooling is gas carburized, oil quenched and heat treated to a minimum hardness of 58 Rockwell. No cast or ductile (brittle) iron is ever present in any BendPak pipe bender tooling.

Features

  • Made from precision machined solid steel
  • Step-cut manufacturing process contains larger-sized tubing
  • Gives BendPak benders the ability to bend 76 mm OD tubing
  • 4-piece set

Small 76 mm Die Package Specifications

Small 76 mm Die Package specs diagram

Overview

Bending Controls:
Expander Controls:
Frame Style:
Max. Tube Capacity:

Bending

Max. Bending Radius:
Min. Bending Radius:

Hydraulics

Top Cylinder Force:
Hydraulic Filter:
Motor:

Die Pack

Standard:

Dimensions

Width:
Depth:
Height:

Shipping

Weight:
Dimensions:
BS-300 3" Back Shoe
2
5R-300 5" Radius Bending Die
1
SS-300 Segment Expander
1
Shipping Weight
60 lbs. (27 kg)
Shipping Dimensions
13" x 13" x 4" (330 mm x 330 mm x 102 mm)
