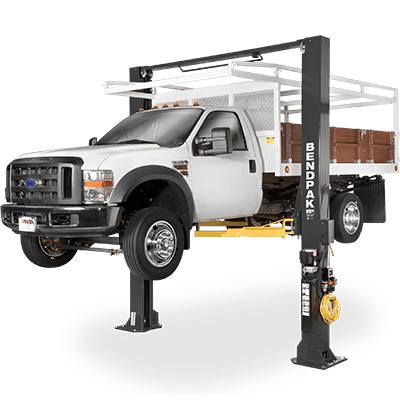

Extreme Hoisting Power in our Classic Two-Post Hoist Design
With hoist columns placed farther apart to accommodate wide truck mirrors, even full-size pickups are a cinch to hoist. If this is the last hoist you ever purchase, you’re going to have it with you for a long, long time.
With a BendPak car hoist, expect incredibly fast rise and descent speeds, as well as the ability to open doors without banging them against the hoist columns. The XPR-15CL comes with the same safety features as our other XPR series hoists. Easy-to-use, friendly interfaces come with the best customer service and installation teams in the business. From the breezy ordering process to delivery and installation, BendPak makes getting a powerful hoist that fits in your garage a hassle-free experience.
Designed to allow users the freedom to move freely underneath the hoist, this model features our Clearfloor design. The hydraulic lines run overhead, safely tucked inside the top crossbeam.
Dual direct-drive technology
By utilizing two low-pressure HVLP direct-drive cylinders, we've eliminated the need for hoisting chains or screw mechanisms commonly found on other hoist designs. HVLP direct-drive technology offers better reliability, smoother operation and less maintenance. High-volume and low-pressure equates to less workload placed on the entire hydraulic system.
Industrial-grade hydraulic cylinders
BendPak hydraulic cylinders are made from pilot-fitted, machined steel pistons wrapped with specially designed, pressure-loaded U-cup piston seals, backups and wear bands that do not allow fluid to bypass back across the tubing. The rod is composed of C-1045/50 micro-alloy steel and plated to a minimum of .001" diametrically. Our high-durometer, mechanically loaded rod seals prevent rods from leaking, and a urethane rod wiper provides exclusion protection. The cylinder body is welded from high-grade steel and meets/exceeds ASTM specifications.
Super-duty telescoping arms
If you’re looking at the XPR-15CL, we know you might be servicing some extremely heavy equipment: garbage trucks, large fleet vans, small buses and more. The telescoping arms on this two-post hoist have you covered to safely hoist up to 6,804 kg.
Low-profile, dropped-end frame contact pads
Sports cars and low-profile compact vehicles are no problem for the XPR-15CL. If we raised the hoist capacity but lost the ability to service more commonly used vehicles, we’d really be doing ourselves (and you) a disservice. BendPak’s heavy-duty hoists expand your hoisting potential; we don’t simply swap light-duty capability for heavy-duty capability as you move up the chain.
16-Piece adapter set / standard
Every two-post hoist comes standard with our 16-piece adapter set, so you never have to worry about hoist points that are too high or too low. You’ll get eight stackable adapters, four 76 mm and four 152 mm, as well as eight cradle pads (four polyurethane pads and four cradle pads). If you’re hoisting trucks or vans with running boards or auxiliary fuel tanks, the adapter set is must-have, and it comes at no extra cost to you!
Lowered arm tube supports
Because the dimensions on the XPR-15CL are expanded to accommodate larger-type vehicles, BendPak designed the arm tube supports low enough to accommodate small vehicles. There’s no point in having a workhorse that handles heavy stuff but not lighter stuff, so we’ve made sure each type handles the same vehicles as our lighter-capacity hoists.
Automatic arm restraints
Heavy vehicles present an increased need for safety features. The thought of a full-size pickup or garbage truck falling on your garage floor is truly frightening. BendPak eliminates the risk by including extremely powerful auto-locking arm restraints that engage when the hoist goes up and release when it descends.
Taller hoist carriages
By building our hoisting carriages 1,346 mm high, BendPak two-post hoists are made safer, more durable and more efficient than our competition’s carriages.
Maintenance-free load bearings
Durable, reliable and totally chemical-resistant, BendPak’s UHMW (ultra-high molecular weight polyethylene) load bearings last forever. No lubrication or maintenance necessary.
Two XPR-15CL columns can hold a combined weight of 6,804 kg. This is possible in part because of their single-piece construction, which reduces and evenly distributes the stress across the columns.
Single-point safety release
Need to stop all procedures immediately? A single-point safety release is in place for you to use at a moment’s notice.
On the level
A dual-synchro equalization system ensures your two-post hoist rises equally no matter what.
If any vehicle touches the overhead structure, the hoist automatically shuts off, even if the user continues to attempt to raise the hoist.
With 10 mm hydraulic lines, a high-flow pump and integrated AC power-unit, this car hoist is one of the fastest in the industry.
Choose Extended Height
The safe and rugged XPR-15CL-192 features hoist columns that are longer than the standard model, so larger vehicles can be easily accommodated.
- 6,804-kg hoisting capacity
- CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
- Padded overhead safety shutoff bar
- Extended height top-beam provides greater overhead clearance
- Single-point safety release
- Dual direct-drive hydraulic cylinders
- Dual-synchro equalization system for equal hoisting
- Oversized 1,346 mm tall carriage for superior strength and durability
- Electric / hydraulic power system
- Oversized A36 steel base plates
- Self-lubricating dura-glide UHMW polyethylene bearing system
- Safety locks in each column spaced every 76 mm
- Plated arm restraints and arm pins for rust prevention
- Heavy-duty 13 mm aircraft-quality equalizer cables
- Oversized cable sheave diameter reduces cable fatigue
- Durable, rubber hoist pads with stackable adapters
- Multi-piece adapter set includes four 152 mm stackable adapters, four 76 mm stackable adapters, four polyurethane contact pads and four frame cradle pads. Ideal for trucks and vans with running boards or auxiliary fuel tanks
- Convenient storage is included for truck and van adapters
- Versatile drop-in contact pads with stackable adapters
