Two-Post Hoists by BendPak

GP-7LCS

SKU# 5175995

GrandPrix Series 2-Post Hoist / 3,175-kg. Capacity / 2,705 mm Overall Height


The GP-7LCS is a truly one-of-a-kind design. Because it fits in garages with ceilings as low as 2.75 metres. it boasts the lowest columns ever found on a permanent two-post hoist. It can be installed in virtually every garage on the planet and still offers an impressive 1,473 mm rise.

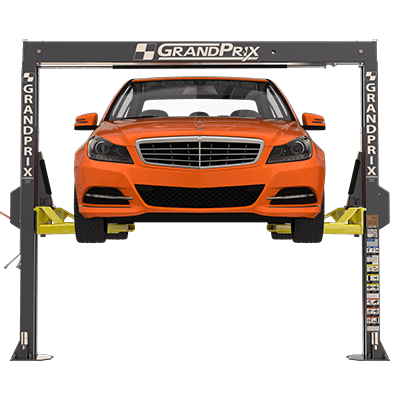

GrandPrix GP-7LCS Low-Ceiling Two-Post Hoist with a 2,705 mm Height
User Manual Download
Sales Sheet Download
Warranty Download

Who should get the GP-7LCS?

The GrandPrix was invented to give you more versatility to work from home. Its extremely low-profile columns don't sacrifice lifting capacity: the GP-7LCS offers the full ​3,175-kg. ​hoist of the other GrandPrix models and boasts a full 1,473 mm rise.

It's hard to overstate how different the GP-7LCS is from any other garage ​hoist. Two-post hoists have long been standard equipment for professional service bays, but many DIY'ers have been waiting for the day a model would come along that fits in an average-size garage. To this end, compromises have come in the form of "portable" two-post models. But in all likelihood, these hoists lack the GrandPrix's backup safety features, the sheer ruggedness of its construction and its full lifting height. Not to mention, the GrandPrix comes with the same great industry-best warranty as other BendPak two-posts hoists. It's also backed by a full service team to support your every need, before and after your purchase.

The incredible, game-changing upside of the GP-7LCS is that it stands at just 2.7 metre. Even if it doesn't offer as much rise as high as other two-posts, its impressive 1,473 mm is still more than what you get with low-profile, mid-rise scissor lifts. So, if you're between a scissor lift and a GrandPrix, both of which are ideal for garages with tight space and/or low ceilings, the GP-7LCS ultimately offers more lifting height.

For more lifting height, we recommend the ​1,727 mm rise GP-7LC, which fits in garages with ceilings as low as 3-1/3 metre. Also, the standard-height GP-7 offers a whopping ​1,981 mm rise and requires ​4-1/3 metre ceilings.

More lift, less steel

Super-slim side columns define the look of the GrandPrix. Its stunning and simple design features an overhead crossbar with a built-in auto-shutoff bar, eliminating any risk of vehicles slamming into the overhead steel beam. All this is built into an extremely compact hoist. Despite the slimmer proportions, you still get ample drive-thru and clearfloor design for a look at that's as clean as it is practical.

Four lifting cables

Quad lifting cables ensure your GP-7LCS is as reliable as any two-post ​hoist ever made. Just because it's a short design doesn't mean the GrandPrix comes up "short" on safety. In fact, it features twice as many steel lifting cables as other two-post hoist and four-post hoist models. This ensures that in virtually every single circumstance, as long as the hoist is properly operated and maintained, failure in the form of uneven lifting or sudden drops is entirely eliminated. The backup cables are redundant; they're simply there to guarantee peace-of-mind at all times.

Single overhead cylinder

Most hydraulic two-post hoists use dual hydraulic cylinders in the side columns. That's because most hydraulic cylinders found in car hoists are longer than the length of the hoist's overhead crossbeam. They simply won't fit anywhere but the side columns, so the columns have to be made thick enough to house the cylinders. To solve this problem, GrandPrix pairs the lifting power of a single, shortened overhead cylinder with four aircraft-quality lifting cables. Our crucial placement of the cylinder frees up a lot of space along the sides, allowing the GP-7LCS to use a lot less steel. The result is a slimmer, safer, 100% industrial-grade hoist that homeowners and professionals alike can be proud to put in their garages.

Bi-metric™ arms

Dual-capability Bi-metric arms can be adjusted for symmetric or asymmetric vehicle loading at any time. Some operators prefer to center their vehicles, while others prefer the asymmetric style that permits more door clearance. Oftentimes, user preference comes second to the actual space available and layout of the garage. That's why GrandPrix lets you switch between both. No additional purchase necessary.

Features

  • 3,175-kg. ​lifting capacity
  • Telescoping Low-Pro™ arms for sports cars
  • Bi-metric asymmetric & symmetric arm configuration
  • Lowered arm tube supports
  • Automatic arm restraints
  • Single release-point operation
  • Taller lift carriages
  • Automatic safety locks
  • Single hidden hydraulic cylinder
  • (2) redundant safety cables
  • Multiple lock positions

GP-7LCS Specifications

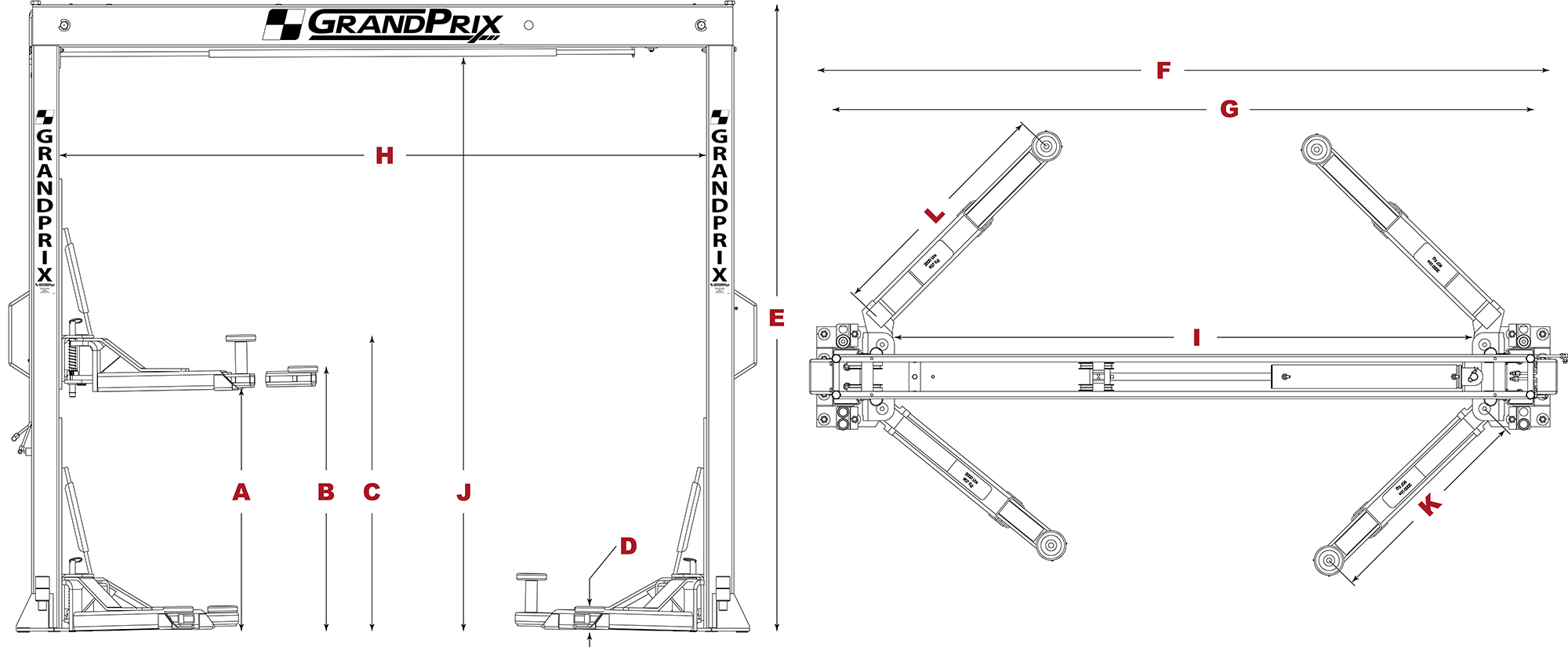

GP-7LCS specs diagram

Capacity

Lifting Capacity*
7,000
*Max Capacity / Front Axle
3,500
*Max Capacity / Rear Axle
3,500

Rise

A - Rise:
54
B - Rise + Pad Only:
58
C - Rise + Pad + 63 mm Adapter:
66
D - Min. Height + Pad:
4.5
Time to Full Rise:
45 seconds

Outside Dimensions

E - Height Overall:
106.5
F - Width Overall:
or 125
G - Outside Columns:
or 119.5

Inside Dimensions

H - Inside Columns:
or 110
I - Drive-Thru Clearance:
or 89.5

Arms & Pads

K - Front Arm Reach: (MIN)
26
K - Front Arm Reach: (MAX)
42
L - Rear Arm Reach: (MIN)
26
L - Rear Arm Reach: (MAX)
47.5
Screw Pad Adjustment:
Max Load Per Arm
1,750

Floorplate

L - Height:
M - Width:

Power Unit

Motor:
220 VAC / 60 Hz / 1 Ph
Noise:
45dB

Shipping

Weight:
Dimensions:

Note: Not all BendPak hoist models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.
