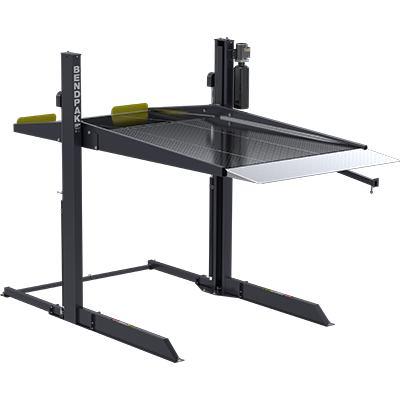

BendPak's Upgraded Version of a Classic
For garages that want a little extra reinforcement built into the bones of their parking lift, especially in heavy-use garages and commercial environments, the deluxe PL-7000DLX is an upgrade over the ever-reliable PL-7000XR. We lengthened and widened the approach ramps; designed sturdier galvanized diamond plate platform; added bolt-on, strengthened diamond plate center panels; raised the control arm; and we lengthened and reinforced the front legs to lessen tension load on the front anchors. These upgrades result in a more durable and easier-to-use version of one of the safest and most reliable parking lifts ever made.
Two-post parking lifts are popular because they service one purpose: parking vehicles in tighter spaces. Unlike wider four-post hoists that double as parking lifts, the PL-7000DLX has all the lifting height while taking up less space in your garage. This makes them ideal for both home users and professionals who want to stack multiple hoists side-by-side without an inch of room to spare. The units can be staggered or installed in an even row.
Lengthened and reinforced front legs
The PL-7000DLX features lengthened and reinforced front legs that lessen the pull-out tension load on the front anchors. The front legs extend 483 mm farther than the PL-7000XR.
Galvanized diamond plate platform
The deluxe galvanized platform on the PL-7000DLX is a zinc-coated thing of beauty. The galvanization process makes the steel virtually indestructible. Neither weather nor abuse will ever mar or rust out the deck. The diamond-plate is attractive and non-skid, so it offers superior grip for vehicle tires. It's also now secured in place with fasteners. These bolt-on diamond-plate center panels work to strengthen the hoist, so the deck stays reliable for many years of extremely low-maintenance service.
Full-width and extended approach ramp
The drive-on ramp has been extended 635 mm to accommodate low ground-clearance vehicles. The ramp is now full width to make vehicle approach easier, especially for wide vehicles and large tires.
Raised control arm
The PL-7000DLX control arm has been raised to 1,829 mm for increased drive-under clearance. The increased height also makes the controls easier to access.
Dual hydraulic cylinders
BendPak has perfected the hydraulic hoist system. Dual cylinders provide an even lift, while an integrated flow divider on each cylinder controls the lift descent in the extremely unlikely event of catastrophic hose rupture.
Dual synchronization lifting chains
Heavy-duty lifting chains lift evenly and maintain a balanced platform at all times. They’re rugged, maintenance-free and self-lubricating, and they run smoothly over carriage bearings that are also durable and completely maintenance-free.
All moving parts (e.g., cylinders, chains) are kept within the hoist structure. No dirt, debris, spills or weather conditions will affect the performance of your hoist, nor will you risk tangling your clothes or pinching your fingers in the moving chains. This is as much a safety concern as it is designed to provide a more attractive parking lift.
Automatic safety locks
Multiple locking levels let you decide how high or low you’re going to park, so even if you operate in a garage with a low ceiling, you can still safely stack your vehicles. The locks release upon descent.
Wide base support
The base support on the PL-7000DLX is only about the length of a car and just wide enough to provide perfect stability, but it doesn't sacrifice crucial safety features for the sake of being compact. In fact, BendPak has built its reputation on making car hoists that are extraordinarily safe and tested more rigorously than the competition.
Key-activated on /off function
Key activation puts you in complete control of your parking lift structure. This is a safety feature that's obviously convenient for operators in garages. It keeps the controls in the hands of those certified to use it. It's also great for home users. Kids, pets and foolish friends won’t raise or lower the platform just by bumping the buttons.
- 3,175-kg. lifting capacity parking lift
- Full-width and extended approach ramp
- Galvanized diamond plate platforms
- Bolt-on and strengthened diamond-plate center panels
- Lengthened and reinforced front leg lessens tension load on front anchors
- Modified (elevated) control arm
- Minimum footprint allows multiple installations in limited space
- Independent lifting structures allows for staggered installation
- Power-unit and controls integrated within lift structure
- Freestanding design reduces tax and permit liabilities in most counties
- Overhead power unit provides smooth quiet hydraulic operation
- Wide-deck platform accommodates pickups, vans and cars
- Designed for installation on typical parking surfaces
- Durable construction for maximum stability
- Dual hydraulic cylinders and heavy-duty lifting chain
- Dual synchronization chains keeps the deck level under all conditions
- Automatic safety lock
- Maintenance-free composite carriage bearings
- Maintenance-free self-lubricating chain rollers
- Wide-base plate mounts directly on grade, even on asphalt
- No special site preparation required for installation
- Optional audible/visual descent alarm available
- Standard integrated key-activated power on/off switch
Note: An air supply (minimum: 30 psi / 3 CFM) is may be required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
