Jacking Beams by BendPak

RJ45W

SKU# 5175247

2,041-kg. Capacity / Jacking Beam / Easy-Roll Wheels

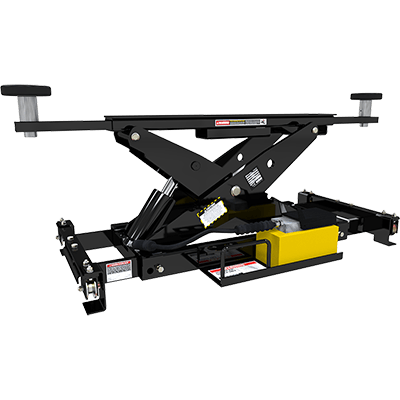

BendPak RJ45W jacking beams are designed to hold up to 2,041-kg. Use this sliding jacking beam with your BendPak HD-9 four-post series car hoist for increased versatility and productivity.

Jacking Beam for 4-Post Hoists RJ45W BendPak
User Manual Download
Sales Sheet Download
Warranty Download

Hoist ​2,041-kg. for Full Wheel Service Capability

The RJ45W jacking beam is the DIY’ers dream product, and it’s ideal for any shop with the HD-9, arguably our most popular and versatile car ​hoist. The HD-9 is the ​hoist that many garages prefer because its optional caster kit allows operators to move it anywhere in their shop. Its compact size and reputation for safety mean this is one of the most popular car ​hoists ever made. Anyone interested in a four-post hoist for wheel service should consider the HD-9 complete with a pair of RJ45W ​jacking beams.

Rubber contact pads

BendPak protects your vehicles by providing a non-marring rubber contact pad on the popular RJ45W sliding jack beam. The durable design will hold up for many years of heavy use. We highly recommended purchasing the optional frame cradle set for use on trucks and SUVs.

Stackable adapters

Once your rubber contact pads are positioned under the manufacturer-recommended hoist points, you may find that high-clearance vehicles are hard to reach. The stackable adapter set comes in handy to bridge that gap and make hoisting easier.

High-pressure hydraulic power unit

Attached to the jacking beam is a hydraulic power unit that also features an airline with 125 psi and 10 – 20 CFM. This independent power unit is ergonomically controlled with a foot pedal attached directly to the jack.

Three lock levels

With three lock positions to choose from, it’s easy to find the perfect height to perform wheel and brake service. For additional height, raise the car ​hoist to its max height, add the stackable adapters and raise the ​jacking beam as high as it will go. Now you have more access to the undercarriage than ever before.

Features

  • ​2,041-kg. hoisting capacity
  • Rubber contact pads
  • Stackable adapters
  • High-pressure hydraulic power unit
  • Optional air-line kit
RJ45W specs diagram

Capacity

Lifting Capacity*

Rise

A - Max. Height + Pad Only:
B - Max. Height + Pad + Adapter:
C - Min. Height + Pad Only:
D - Min. Height + Pad + Adapter:
Time to Full Rise:

Reach

F - Support Arm Width:
-
G - Max. Arm Reach:
H - Min. Arm Reach:

Power Unit

Motor:
Noise:

Shipping

Weight:
Dimensions:

RJ45W Specifications

Lifting Capacity
4,500 lbs. (2,041 kg)
Suitable Lift Model(s)
HD-7 Series, HD-9 Series, GP-9 Series

Min. Drive-Over Height*

Pad Only:
4.5" (114 mm)
Pad + 2.75" Adapter:
7.25" (184 mm)
Pad + 5.5" Adapter:
10" (254 mm)

Max. Lifting Height*

Pad Only:
15.5" (394 mm)
Pad + 2.75" Adapter:
18.25" (464 mm)
Pad + 5.5" Adapter:
21" (533 mm)

Reach

Support Base Width:
35.5" (902 mm) - 46.5" (1,181 mm)
Max. Arm Reach:
57" (1,448 mm)
Min. Arm Reach:
42" (1,067 mm)
Time to Full Rise:
55 seconds
Pump:
Air/Hydraulic
Air Pressure:
125 PSI (10-25 CFM)
Max. Operating Hydraulic Pressure:
2,490 PSI
Power Requirement:
None
Shipping Weight:
380 lbs. (172 kg)
Shipping Dimensions:
41.25" x 25" x 13" (1,048 mm x 635 mm x 330 mm)

* Dimensions listed are taken from the upper surface of the suitable four-post lift runway.

Included commercial-grade air-hydraulic pump requires 125 psi and 10 – 20 CFM.

Note: Not all BendPak hoist models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.
