Full-Rise Scissor Hoists by BendPak

SP-7XLF

SKU# 5175993

3,175-kg. Capacity / Scissors / Frame Engaging / Flush Mount


This flush-mount version of our full-rise scissor hoist is ideal for shops that are limited in space but have a huge demand for performance. The SP-7XLF has all the hoisting height of a two-post hoist without the columns that take up precious shop space. Features a 55.8 cm x 160 cm hoist platform, equalization torsion bar, hardened pivot pins, dual hydraulic cylinders and ergonomic controls.

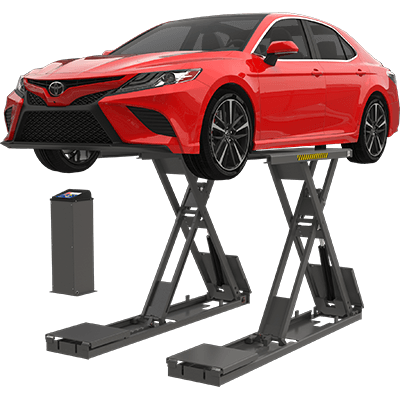

SP-7XLF Flush-Mount Scissor Hoist by BendPak
User Manual Download
Sales Sheet Download
Warranty Download

The Full-Rise, Flush-Mount Scissor Hoist

The SP-7XLF is the flush-mount version of our full-rise scissor hoist. If your garage has a recessed area of concrete designed to hold flush-mount ​hoists, you’ll be pleased by how “invisible” this hoist is in your garage. When it’s collapsed, you’re free to drive over it and work around it without tripping on wires or cables. We’re proud that the collapsed SP-7XLF is extremely low-profile, but if you want to take low to virtually zero, the flush-mount version of this model is the perfect car hoist solution for your garage.

Open-center design

With ​1,727 mm of hoisting height and an open center, many mechanics have comfortable standing room to perform oil changes, transmission drops and an infinite number of other undercarriage services.

Large base frame

The heavy-duty boxed-steel formed base frame increases stability and reduces stress on the overall structure. The elongated base provides a solid foundation for a smoother, perfectly level rise.

Electric-hydraulic power system

An electric hydraulic power system is kept in a rugged console box off to the side of the ​hoist, safe from the hoisting/lowering of the frames in and out of your flooring. The controls are easy to reach and allow you to keep an eye on your surroundings while hoisting and lowering heavy vehicles.

Dual master hydraulic cylinder

In order to push the frames out from a flush-mount position quickly and powerfully, the SP-7XLF is fitted with two hydraulic cylinders with flow restrictors to ensure an even hoist. The controlled flow is sophisticated enough to prevent the risk of tipping, even if one cylinder loses pressure (due to an unlikely rupture or pinch, for instance). No emergency will result in the up-ending of your vehicle—the car ​hoist would simply descend to the ground evenly on both frames.

Pneumatic safety locks

A single convenient operator stand allows you to release the pneumatic safety locks from a safe distance without ever worrying about manually hoisting release arms or latches. The locks disengage when the ​hoist lowers and automatically, and multiple locking positions provide operators with more service options. The locks engage or disengage at each position seamlessly with the movement of the scissor hoist frames.

Hardened pivot pins with Z​erk fittings

Zerk grease fittings are self-lubricating and long-lasting, ensuring a smooth rise and descent of the hoist platforms at all times.

Durable, cushioned rubber contact blocks

Hard rubber blocks set right atop the rubber padding on the hoist platforms, safely and securely engaging vehicle pinch rails and OEM frame hoist points.

Detailed installation and maintenance instructions

An easy-to-read owner's manual offers complete installation instructions and maintenance tips, as well as safety/caution decals that come standard with every ​hoist purchase.

Features

  • Flush-mount
  • 3,175-kg. hoisting capacity
  • Pneumatic safety locks
  • Equalization torsion bar
  • Hardened pivot pins with "Zerk" fittings
  • Open-center design
  • Ergonomic controls
  • Dual-cylinder hydraulic design provides extra power
  • Low-profile

Specifications

SP-7XLF specs diagram
Lifting Capacity:
3,175 kg (7,000 lbs.)
Max height raised:
1,781 mm (70")
Single platform length:
1,590 mm (62.5" )
Single platform width:
554 mm (22")
Overall length:
2,692 mm (105.5")
Overall width - Min:
2,072 mm (81.5")
Overall width - Max:
2,222 mm (87.5")
Lowered lift height:
0 mm (0")
Lifting time:
45 seconds
Motor:
1,054 kg (2,318 lbs.)
