HDSO14AX

SKU# 5175153

6,350-kg. Capacity / Open-Front Alignment Hoist / Extended / Includes Turnplates and Slip Plates


The HDSO14AX is an open-front, 6,350-kg. capacity alignment hoist. The “open” design makes it easier to access the front turn plates and undercarriage, and features front turn plates and rear slip plates built right into the runways. Wheels respond to adjustments with no resistance.

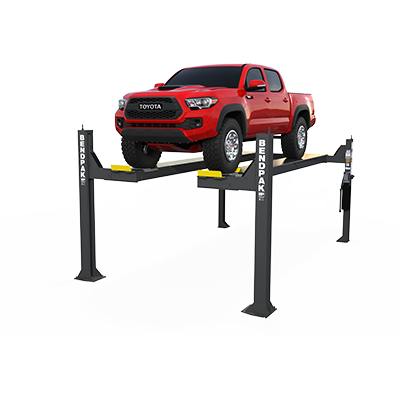

HDSO14AX Four-Post Open-Front Alignment Hoist by BendPak
User Manual Download
Sales Sheet Download
Warranty Download

Open-Front Design and 6,350-kg. of Might

We engineered the HDSO14AX alignment hoist without a front crossbar, so operators can easily enter and exit from beneath the vehicle. Now the process of front-end adjustment becomes quick and trouble-free. This is a must for busy alignment bays. Additionally, for precise front-hoist leveling, nothing beats our patented, adjustable front outrigger tubes. The infinitely adjustable pitch compensates for excessive loads and sloped floors.

Slip plates

Rear-facing multi-caster slip plates and front-facing turn plates permit precise, free-floating alignment.

Turn plates

This alignment hoist features two recessed turn plate pockets that let you freely position the corrosion-resistant, galvanized turn plates.

Dual-hub cable sheaves

BendPak alignment hoists include strong, durable and oversized ​268 mm diameter cable sheaves within the runway and cross tubes, as well as ​57mm diameter sheave axles. These powerful components keep your car ​hoist running for many years, far past the point other brands’ ​hoists have already given out or required expensive parts replacements.

Heavy-duty aircraft cable

BendPak runs four aircraft-quality steel cables (that measure in at a robust 12.7 mm diameter, 6 x 25), within the columns. They are literally the ultimate standard for high-quality cable construction and safe hoisting.

Adjustable height locking positions

Alignments are often done by different mechanics in a busy shop. The multiple locking heights allow different people to work on the HDSO14AX alignment hoist at the height appropriate for them. Since it’s an open-front design, getting under is easy no matter how tall they are.

Built-in lubrication

Grease fittings are an essential component to every car ​hoist we make. They keep the cable sheaves lubricated, so you don’t have to worry about productivity and safety in our design.

Flow restrictor

Should anything catastrophic occur in your shop to disrupt the functionality of your ​hoist, we want you to feel confident that BendPak keeps your vehicles and equipment safe. If the hydraulics are cut or lose all pressure, which would be extraordinary, the built-in hydraulic flow divider still ensures a safe, even descent at all times.

Spring-loaded safety locks

Our fully adjustable locks are also found on the HDSO14AX alignment hoist. Springs engage as the lock ascends into position. This design also helps keep the platforms even, even if there’s a tiny slope to your garage flooring.

Push-button pneumatic lock release

Air locks make releasing the locks simultaneous, each and every time. The instant release ensures the alignment hoist platforms descend evenly.

Secondary lock system

A backup lock system protects the alignment system in the event that cable slack is detected. When this occurs, the cable is immediately “grabbed,” and the entire operation ceases immediately.

Integrated design

BendPak cables, cable sheaves and airlines run internally throughout the structure. Every one of these parts is susceptible to damage and extra wear if left exposed. We keep the look and feel of this alignment hoist clean while protecting the most critical parts and components.

Electric-hydraulic power system

The power unit never needs to be maintained or adjusted. It’s also so easy and safe to use, we recommend it for both home and commercial applications.

Longer approach ramps

Because our approach ramps are longer, they make it easier to load low ground-clearance vehicles. So easy, in fact, that you’ll never scratch up the bottom of your car or struggle with the gas pedal to give enough gas without shooting onto the ramp at an unsafe speed. Simply glide on and start aligning.

Flexible protective conduit

The durable conduit that surrounds the airlines and hydraulic hoses prevents damage to the cables. It also keeps you safe from electrical shock.

Rolling ​jacking beams

Rolling bridge jacks turn your alignment hoist into an all-purpose four-post ​hoist. No need to transfer to a different car ​hoist to perform wheel and brake service. Now you can change brake rotors right before you align the wheels, all on the same hoist. Rolling ​jacking beams are a safe and space-saving way to increase shop capability without purchasing more equipment.

Features

  • 6,350-kg. hoisting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
  • Heavy‐duty turn plates and integrated rear slip‐plates included
  • Multi‐position turn plate pockets
  • Automatic leveling system
  • Multiple auto-leveling locking positions
  • Runways include rail‐kit for optional accessories
  • Electric / hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed hoisting cables, safety locks, and sheaves
  • Internal “Anti-Sway” UHMW slider blocks in each column
  • Features oversize sheaves and heavy‐duty 13 mm aircraft cable
  • Rugged 25 mm roller axles and oversize self‐lubricating cable sheaves
  • Multi‐position safety locks in each column with push‐button safety release
  • Runways adjust for different tread widths
  • Optional 3,175-kg. capacity jacking beams available (Model RBJ7000)

HDSO14AX Specifications

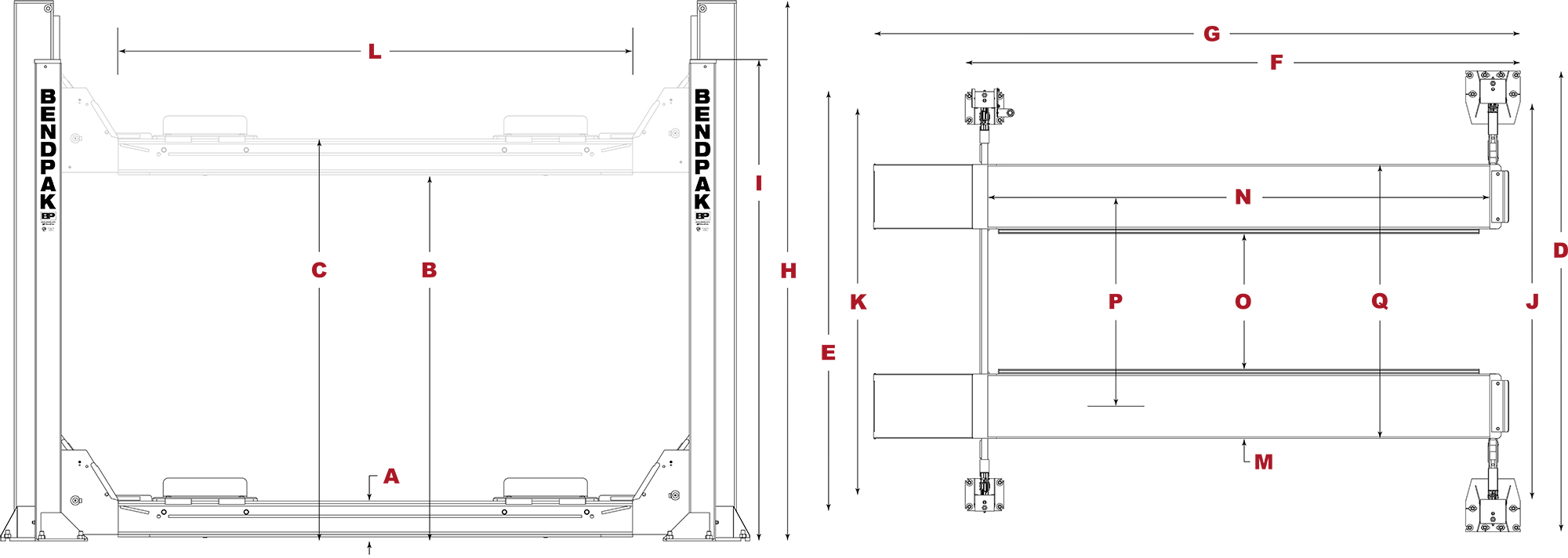

HDSO14AX specs diagram

Capacity

Lifting Capacity*
14000
*Max Capacity / Front Axle
7000
*Max Capacity / Rear Axle
7000

Rise

A - Min. Runway Height:
7.625
B - Max. Rise:
70
C - Max. Lifting Height:
77.625
Time to Full Rise:
60 seconds
D - Overall Width (FRONT)
3,632 mm (143”)
E - Overall Width (REAR)
3,301 mm (130”)
F - Outside Length
5,472 mm (215")
G - Overall Length
6,191 mm (243")
H - Height of Columns (FRONT)
2,664 mm (105")
I - Height of Columns (REAR)
2,613 mm (103”)
J - Width Between Columns (FRONT)
3,124 mm (123”)
K - Width Between Columns (REAR)
3,046 mm (120”)
L - Drive-Thru Clearance
2,464 mm (97”)
M - Runway Width
520 mm (20.5”)
N - Length of Runways
5,054 mm (199")
O - Width Between Runways
1,143 mm (45")
P - Min. 4-Wheel Alignment
2,261 mm (89")
Q - Max. 4-Wheel Alignment
3,962 mm (156")
R - Max. 2-Wheel Alignment
4,623 mm (182")

Outside Dimensions

D - Overall Width:
E - Outside Length:
F - Overall Length:
G - Height of Columns:

Inside Dimensions

H - Width Between Columns:
I - Drive-Thru Clearance:

Runways

J - Runway Width:
K - Length of Runways:
L - Width Between Runways:
or

Alignment

M - Min. 4-Wheel Alignment:
N - Max. 4-Wheel Alignment:
O - Max. 2-Wheel Alignment:

Minimum Wheelbase

Rated Capacity:
140
75% Capacity:
120
50% Capacity:
100
25% Capacity:
80

Locking

Locking Positions:
13
Lock Spacing:
4

Power Unit

Motor:
220 VAC / 60 Hz / 1 Ph
Noise:
45 dB

Shipping

Weight:
1,407 kg (3,102 lbs.)
Dimensions:
5,309 mm x 559 mm x 1,118 mm (209" x 22" x 44")

Note: An air supply (minimum: 30 psi / 3 CFM) is required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.

Note: Not all BendPak hoist models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.
