Two-Post Hoists by BendPak

XPR-12CL-LTA

SKU# 5175258

5,443-kg. Capacity / Two-Post Hoist / Clearfloor / Long-Reach Telescoping Arms


If you need the ability to service vehicles with extremely long wheel bases, BendPak's LWB option offers nearly 1,828 mm of reach, compared to 1,473 mm on our standard triple-telescoping arms. Ideal for hard-to-reach hoist points that other car hoists cannot access

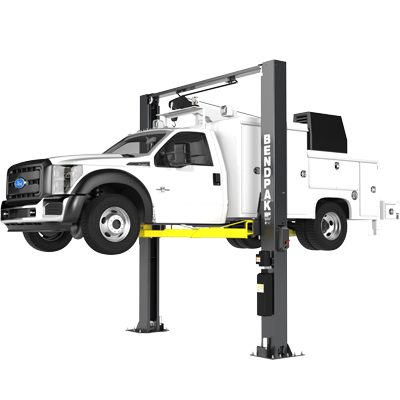

XPR-12CL-LTA Clearfloor Two-Post Hoist by BendPak
User Manual Download
Sales Sheet Download
Warranty Download

XPR-12CL-LTA Two-Post Hoist Offers Long-Reach, Heavy-Duty Hoisting Capability

Finding the hoist points on bigger trucks and vehicles with a two-post hoist can often be a challenging procedure. When hoist arms are too short, they need to be moved closer together to reach the vehicle hoist points and this makes it hard to find the vehicle’s center of balance on especially long wheelbases. But the new BendPak XPR-12CL-LTA solves this problem and allows you to reach even the longest, most difficult wheelbases in the industry. The XPR-12CL-LTA features three-stage telescoping hoist arms with a 1,828 mm maximum range, extending even further than the 1,473 mm on our standard XPR-12CL two-post hoist series. This broader option allows you to find the center of balance on the biggest trucks around, giving you the versatility and power to safely hoist any vehicle up to its 5,443-kg. capacity.

Despite its length and nature, the XPR-12CL-LTA wasn’t just designed for hard-to-reach hoisting points. Though its capable construction can handle bulkier and heavier trucks and even heavy-duty commercial vehicles, the XPR-12CL-LTA can adapt to fit any project in your garage. The three-stage telescoping arms collapse to standard length for rapid changes to reach standard, and compact vehicles of any size; and with its user-friendly controls and top-of-the-line safety measures, this hoist is the perfect companion for any commercial garage.

The XPR-12CL-LTA is also a clearfloor two-post hoist, allowing you ease of movement underneath. With clearfloor hoists, the equalization beam is overhead providing ample room for shop equipment like toolboxes, transmission jacks, oil drains or any other tool you may need nearby while you work. With the unique options and characteristics expected of any BendPak two-post hoist, the XPR-12CL-LTA’s capabilities are as far-reaching and versatile as its hoisting arms.

The XPR-12CL-LTA is ALI Certified

The Automotive Hoist Institute (ALI) is the golden standard of automotive hoist safety. With their ANSI accreditation, ALI is the only nationally recognized institute for hoist certification. An ALI Certification assures you that the automotive hoist in your garage meets with the quality and safety standards developed by ALI over the last 74 years of its operation. A hoist that is ALI Certified had to meet with rigorous safety standards to determine the safety of its structural integrity, design, components, manual instruction and production facility.

Choosing an ALI Certified hoist is important for your safety and the safety of your vehicles. You should know that the hoist you’re relying on has been vetted by the top hoist safety experts in the industry. Here at BendPak we understand the reliance placed on our hoists, and make our products with quality and safety at the forefront of production. With its ALI Certification, you can be sure that not only is the XPR-12CL-LTA an innovative hoist, but it was built to last.

Hoist Carriages Strengthened to Handle Long Reach

Along with its extended reach, the XPR-12CL-LTA features extra carriage strength to counter the extra weight of the extra-long arm.

Optional column extension

BendPak can increase your overhead clearance to 4,876 mm overall height to maximize the number vehicle types you can service in this weight class.

Quality assurance for heavy-duty hoisting

When you buy BendPak, you can expect a significant boost in performance and hoist operation life expectancy because your hoist is built to be the last one you ever purchase. No one surpasses us in quality and safety. That’s why when you get one of our hoists, you get more than just a great product. You get peace of mind. That’s the benefit of owning a BendPak.

Triple-telescoping arm set

Three-stage front and three-stage rear arms provide greater maximum reach, as well as superior minimum retraction. Use this super-duty hoist system for raising standard passenger vehicles and heavy-duty trucks.

Low-profile, dropped-end frame contact pads

Despite the higher hoist capacity, the XPR-12CL-LTA makes it just as easy to get under your low-profile. This is because the two-post hoist arms are designed to be versatile with virtually all vehicle types.

16-Piece adapter set / standard

Others might charge extra for these necessary adapters, but they're standard with every XPR-12CL-LTA. The multi-piece set includes four, 6" stackable adapters; four, 76 mm stackable adapters; four polyurethane contact pads; and four frame cradle pads. It’s ideal for trucks and vans with running boards or auxiliary fuel tanks.

Lowered arm tube supports

A heavy-duty two-post hoist has different dimensions than our smaller hoists, which means our design needs to ensure that all vehicle frames, especially the frames of low-hanging doors, have sufficient clearance to open their doors while the hoist is in operation.

Automatic arm restraints

When the hoisting arms rise, arm restraints automatically engage even the largest vehicle. When the hoist descends, the restraints release. No matter the size of your load, it will be safe, sturdy and virtually immovable.

Taller hoist carriages

We build our hoist columns tall in order to reduce the load stress placed on each column. With a 4,318 mm column height, which is taller than many of our competitors, BendPak remains the more durable option for your garage.

Maintenance-free load bearings

BendPak makes its load bearings out of UHMW (ultra-high molecular weight polyethylene) to ensure they last the entire life of the hoist. They never require lubrication (unlike roller bearings) and are resistant to harsh chemicals and other environmental hazards.

Single-piece columns

Combined 5,443-kg. capacity columns are each made out of a single piece of steel, so each piece stays stronger and lasts longer.

Dual Direct-Drive technology

By utilizing two, low-pressure HVLP direct-drive cylinders, we've eliminated the need for hoisting chains or screw mechanisms commonly found on other hoist designs. HVLP direct-drive technology offers better reliability, smoother operation and less maintenance. High volume at a low pressure equates to less workload placed on the entire hydraulic system.

Single-point safety release

The car hoist's safety release is single-point and easy to use. We keep our operations simple, so you stay safe at all times.

On the level

In order to maintain a safe garage environment, every XPR-12CL-LTA two-post hoist comes with our dual-synchro equalization system. This keeps the hoisting mechanics equal on both sides of the hoist at all times.

Auto-shutoff

A rigid, padded safety shutoff bar automatically stops the hoist should a vehicle come in contact with overhead structure.

High-speed hydraulics

Free-flow, high-pressure 9.5 mm hydraulic lines, a high-flow pump and integrated AC power-unit increase ascent and descent speeds for enhanced productivity.

Industrial-grade hydraulic cylinders

Integrated into every XPR-Series hydraulic cylinder is a one-piece, pilot-fitted, machined steel piston that is wrapped with specially designed, pressure-loaded U-cup piston seals, backups and wear bands that virtually eliminate any fluid bypass. The micro-smooth chrome-rod is machined from high-yield, ground and polished C-1045/50 micro-alloy steel and plated to a minimum of .001" diametrically, to ensure superior cylinder operation and life. The better-designed, high-durometer, mechanically loaded rod seals make rod leakage a thing of the past, while a specially formulated abrasion-resistant urethane rod wiper provides exclusion protection. The welded cylinder body is made from robust steel tubing produced that exceeds ASTM specifications. This combination of superb base material and superior processing ensures that the cylinders remain straight and smooth—and last a very long time.

Features

  • 5,443-kg. hoisting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
  • Padded overhead safety shutoff bar
  • Extended height top-beam provides greater overhead clearance
  • Single-point safety release
  • Dual direct-drive hydraulic cylinders
  • Dual-synchro equalization system for equal hoisting
  • Oversized 1,346 mm tall carriage for superior strength and durability
  • Electric / hydraulic power system
  • Oversized A36 steel base plates
  • Self-lubricating dura-glide UHMW polyethylene bearing system
  • Safety locks in each column spaced every 76 mm
  • Plated arm restraints and arm pins for rust prevention
  • Heavy-duty 12.7 mm aircraft-quality equalizer cables
  • Oversized cable sheave diameter reduces cable fatigue
  • Durable, rubber hoist pads with stackable adapters
  • 16-piece specialty adapter set includes four 152 mm stackable adapters, four 76 mm stackable adapters, four polyurethane contact pads and four frame cradle pads
  • Convenient storage is included for truck and van adapters
  • Long-reach triple-telescoping arms provide increased range for hoisting point access
  • XPR-12CL-LTA Specifications

    XPR-12CL-LTA specs diagram

    Capacity

    Lifting Capacity*
    12,000
    *Max Capacity / Front Axle
    6,000
    *Max Capacity / Rear Axle
    6,000

    Rise

    A - Rise:
    69
    B - Rise + Pad Only:
    74
    C - Rise + Pad + 63 mm Adapter:
    80
    D - Min. Height + Pad:
    5
    Time to Full Rise:
    45 seconds

    Outside Dimensions

    E - Height Overall:
    170
    F - Width Overall:
    or 155
    G - Outside Columns:
    or 144

    Inside Dimensions

    H - Inside Columns:
    or 120
    I - Drive-Thru Clearance:
    or 106

    Arms & Pads

    K - Front Arm Reach: (MIN)
    32
    K - Front Arm Reach: (MAX)
    60
    L - Rear Arm Reach: (MIN)
    32
    L - Rear Arm Reach: (MAX)
    60
    Screw Pad Adjustment:
    Max Load Per Arm
    3,000

    Floorplate

    L - Height:
    M - Width:

    Power Unit

    Motor:
    Noise:

    Shipping

    Weight:
    220 VAC / 60 Hz / 1 Ph
    Dimensions:
    45 dB

    Note: Not all BendPak hoist models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.
