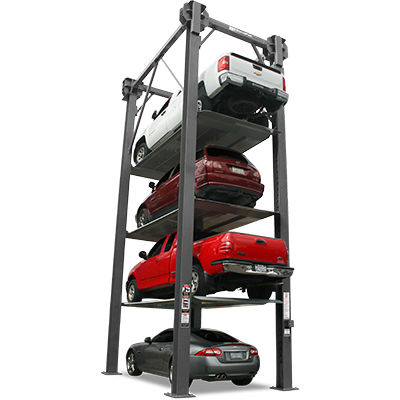

Stack Four Vehicles in a Single Parking Space
The PL-18000 by BendPak is a quad-stacking parking lift designed for both indoor and outdoor lifting and parking operations, and it is engineered to be the most cost-effective way to safely stack four vehicles. Each PL-18000 unit uses a specially designed base frame that distributes the load, making these unique lifting systems suitable for installation on the concrete floor of any home or professional shop.
4x the charm
This parking lift is perfect for cars, light trucks and SUVs. A single unit can be modified to share columns with multiple units, thus safely reducing the number of columns you need to purchase or install. This setup is ideal for commercial garages looking to exponentially increase their parking space. Each of the three platforms supports 2,722-kg., and the structure utilizes both a hydraulic lifting cylinder and an aircraft-quality stainless steel cable system.
The parking lift platforms are full-width and protect the vehicles beneath: no leaks or spills from above will affect the lower-level vehicles. Just like BendPak’s other car hosits, automatic safety locks engage as the hoist rises, and an ergonomically placed hydraulic power unit is easy to start or shut off on command. BendPak’s own leak-proof cylinder technology ensures our hydraulic system is maintenance-free for years to come.
BendPak’s superior engineering really outdid itself with the multi-stacking PL-14000 and PL-18000 parking lifts. Commercial garages can power multiple hoist structures using a single, electric-hydraulic pump on each unit or a multi-unit power pump station that is capable of powering up to 10 BendPak parking lift units (number may vary).
These state-of-the-art car hoist systems are well-suited for commercial parking environments and are powered by independent electric-hydraulic pump units or a multi-unit power station pump system that can operate up to 10 hoists, depending on the configuration, layout and other technical factors. The PL-18000 can be configured for 208-230V, 380V or 440V operations and international voltage is available. Multi-unit pump systems require their own dedicated 3-phase power circuit.
Customize your hoist
If you have a ceiling high enough for a triple-stacker, BendPak offers models with overall heights of 5,359 mm / 5,969 mm / 7,137 mm, and these hoists are fully customizable. The PL-18000XL parking lift, for instance, comes with an extended frame, so limousines and other extended-length vehicles can be lifted with ease. Each model features a set of unique closeout legs that are available for purchase. These parking hoist sets are sold separately.
- 2,722-kg. capacity per deck / 8,165-kg. capacity total
- Superstructure features durable powder-coat finish
- Perfect for cars, light trucks, motorcycles and ATV’s
- Rugged I-beam and C-channel construction
- Single hydraulic cylinder with heavy-duty steel lifting cable
- Built-in wheel stops
- Heavy-duty steel construction
- Wide base-plate for maximum stability
- Reliable electric-hydraulic power system
- Front and rear wheel chocks
- Full-width platform to keep bottom vehicles protected
- Two-position fail safe locking system
- Simple controls
Note: An air supply (minimum: 30 psi / 3 CFM) is may be required for the safety-lock mechanisms to disengage. It is solely the responsibility of the end-user to provide, install and maintain the air supply.
