Jacking Beams by BendPak

RBJ9000

SKU# 5175985

4,082-kg. Capacity / Jacking Beam


BendPak’s 4,082-kg. capacity jacking beam is ideal for use on the HDS-18E four-post hoist, especially if your vehicles have an unbalanced center of gravity. This jack is ideal for heavier trucks and SUVs.

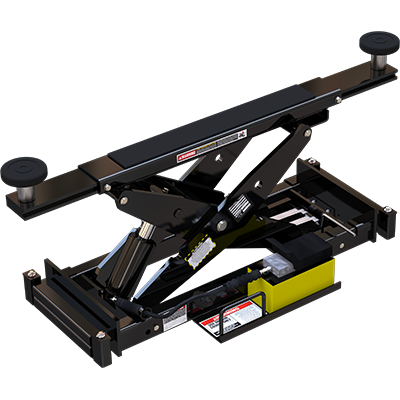

Jacking Beam for a Four-Post Hoist RBJ9000 by BendPak
User Manual Download
Sales Sheet Download
Warranty Download

Lift 4,082-kg. for Full Wheel Service Capability

With a ​6,350-kg. capacity ​hoist, you might think the RBJ7000 rolling bridge jack is sufficient for your vehicle. However, vehicles that max out a lift's capacity might have offset centers of gravity. In such cases, the RBJ7000 is not suitable to lift those vehicles. That’s why we offer the RBJ9000. A heavier-duty jacking beam can save you from having to swap your perfectly fine four-post hoist for a heavier-duty model.

Rubber contact pads

Rubber contact pads are essential lifting components. They increase rise and firmly engage your vehicle’s undercarriage lift points. The durable yet non-marring surface ensures vehicles are not scraped or damaged during ​jacking beam or car hoist operation.

Stackable adapters

The ability to stack and unstack BendPak contact pads increases the versatility of your ​jacking beam. These adapters are also useful for lifting vehicles that may have drastically different front-and-rear suspensions. With two jacking beams employed at once, the front may need an extra adapter to ensure an even lift.

High-pressure hydraulic power unit

BendPak’s ​jacking beams include a pneumatic-hydraulic power unit that comes attached to the jack. The car hoist runs off its own power unit, so there’s no “sharing” of hydraulic power between the two. An airline must be attached to the rolling bridge jack with 125 psi and 10 – 20 CFM. Easy foot pedal control is included for your safety and convenience.

Three lock levels

With three lock positions, your jacking beam can be raised to the level most comfortable for you. Find the perfect height for the perfect job as you also adjust the height of your car ​hoist.

Features

  • 4,082-kg. lifting capacity
  • Rubber contact pads
  • Stackable adapters
  • High-pressure hydraulic power unit
  • Optional air-line kit

RBJ9000 Specifications

RBJ9000 specs diagram

Capacity

Lifting Capacity*
9000

Rise

A - Max. Height + Pad Only:
14.5
B - Max. Height + Pad + Adapter:
18
C - Min. Height + Pad Only:
4.5
D - Min. Height + Pad + Adapter:
8
Time to Full Rise:
45 seconds

Reach

F - Support Arm Width:
41 - 51.5
G - Max. Arm Reach:
56
H - Min. Arm Reach:
42

Power Unit

Motor:
Air-Hydraulic Pump
Noise:
45 dB

Shipping

Weight:
360
Dimensions:
914 mm x 559 mm x 533 mm (36" x 22" x 21")

Included commercial-grade air-hydraulic pump requires 125 psi and 10 – 20 CFM.

Note: Not all BendPak hoist models meet the standards as prescribed by ANSI/ALI ALCTV-2017 or ANSI/UL 201. Consult www.autolift.org for a complete list or contact BendPak via contact@bendpak.com.
